1985 PB270D; Heated Windshield
Topic Started: Jan 20 2012, 03:09 PM (1,294 Views)
rev_man
Member
[ *  * ]
Looking for some info. New club purchased 1985 PB270D and the heated windshield doesn't work. We traced it back to a bad relay / timer. Pisten Bully wants 200.00+ for a new one, we had heard these could be crossed over to a generic relay available through Napa. Anyone heard of this or have any info? The Pisten Bully part number is: 7.735.143.000

Any help at all would be greatly appreciated.

Mike
Bosebuck Mountain Riders.
Offline Profile Quote Post Goto Top

slednek06
Member
[ *  * ]
That should be a generic relay. I own a late 80s 270 and lost the work lights last winter. The relay under the passenger floor, which I'm guessing is where the windshield relay is, was generic and available from napa.
Offline Profile Quote Post Goto Top

rev_man
Member
[ *  * ]
slednek06
Jan 29 2012, 07:17 PM
That should be a generic relay. I own a late 80s 270 and lost the work lights last winter. The relay under the passenger floor, which I'm guessing is where the windshield relay is, was generic and available from napa.
Still working on this with no luck. The problem with the windshield relay is it has a built in timer.
Offline Profile Quote Post Goto Top

rev_man
Member
[ *  * ]
Still looking for info

:grm:
Offline Profile Quote Post Goto Top

Snowbirds
Member Avatar
Advanced Operator
[ *  *  * ]
Auto rear window heater or heated seat relays have built in timers also, NAPA should be able to fix you up.
Offline Profile Quote Post Goto Top

LongWide
Advanced Operator
[ *  *  * ]
Can you post more info ? Any other numbers or brand names on the relay? Can you take pictures of it and post on here?


If you go to Google and then click on "images" at the top, then type in "rear window defroster relay timer" you'll see there are gobs of them. With enough research, you might find a match somewhere, maybe even through one of the electronics catalogs such as www.digikey.com/
Offline Profile Quote Post Goto Top

DrZaugg
Dr Zaugg
[ *  *  * ]
I may have a few of them new in my stash. I would take $50 if i can find them. I need a couple of days though.
Paul@snowcats.com
Offline Profile Quote Post Goto Top

rev_man
Member
[ *  * ]
DrZaugg
Dec 11 2012, 01:27 AM
I may have a few of them new in my stash. I would take $50 if i can find them. I need a couple of days though.
Paul@snowcats.com
Paul,

Sent you a email

Mike
Offline Profile Quote Post Goto Top

rev_man
Member
[ *  * ]

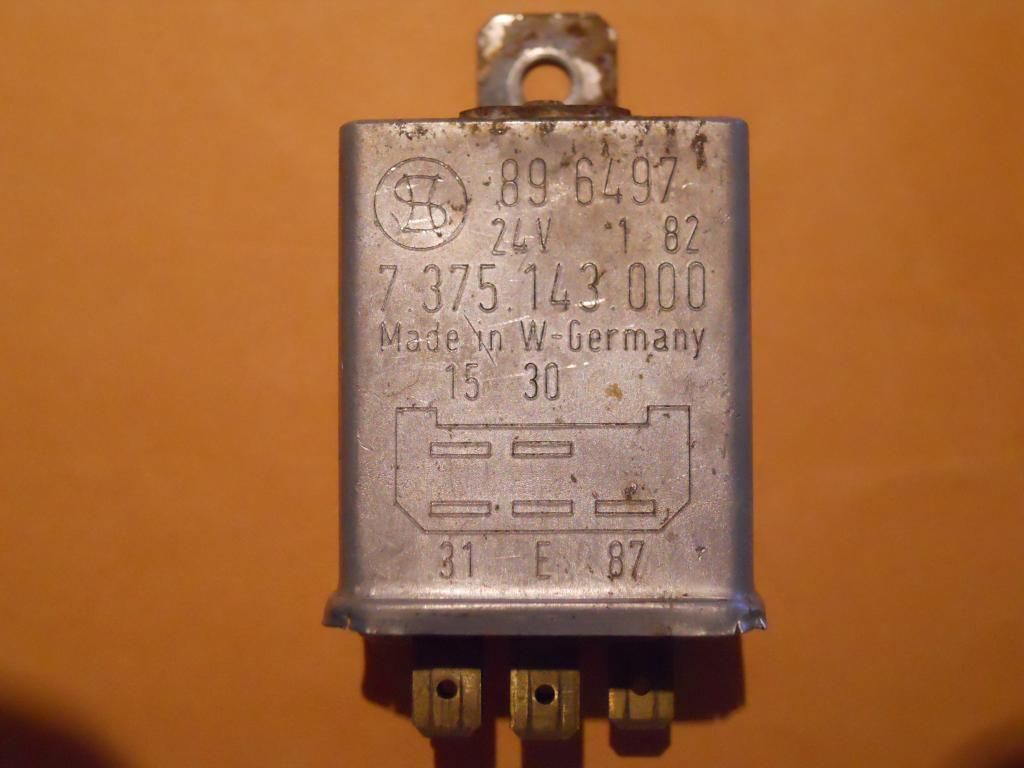

OK guys. attached is a pic of the relay I am after.
. Looking at the wiring diagram and many hours scratching my head ,here is how it is wired.

Terminal 15 = 24v switched
Terminal 30 = 24v constant
Terminal 31 = Ground
Terminal E = 24v trigger from switch
Terminal 87 = out to the windshield element

Best I can tell the way this operates is by hitting the switch in the dash (which is a momentary on type switch from the factory) send a "trigger" to the relay terminal E to start the timer

Doing some research on-line I found Hella makes a 24v adjustable timer : Click

Problem I have is the identification on the Terminals. Can 87A be used as my trigger in from the switch?

Now they also produce in 2 ways:
Delay on Release meaning :Input voltage must be supplied continuously to timer. Actuation of
control circuit causes relay contacts to transfer immediately. Time Delay starts when control circuit is released.
The relay remains energized for the duration of the time delay, then de-energization.
Also called: Delay-On-Break, Off-Delay, Delay-On-Dropout, Delay-On-Energization.
OR
Delay on Operate meaning: Application of the input voltage starts the time delay. At completion of
the time delay, the relay contacts transfer.
Also called: Delay-On-Make, On-Delay,Delay-On-Pickup.

Posted Image
Offline Profile Quote Post Goto Top

600SDI
Advanced Operator
[ *  *  * ]
google the part # 7.35.143.000 lots of manufacturers show it. 5 pin, 24 volt relay
Offline Profile Quote Post Goto Top

rev_man
Member
[ *  * ]
600SDI
Dec 18 2012, 04:03 PM
google the part # 7.35.143.000 lots of manufacturers show it. 5 pin, 24 volt relay
My google must need goggles :floor:

I come up with nothing
Offline Profile Quote Post Goto Top

600SDI
Advanced Operator
[ *  *  * ]
Try here

http://search.yahoo.com/search?ei=utf-8&fr=slv8-frtr&p=7.375.143.000&type=
Offline Profile Quote Post Goto Top
