AGP question 2X, 4X, 8X (Napoli)
Topic Started: Nov 10 2005, 04:20 PM (147 Views)
Pianolady
No Avatar
POSTMASTER GENERAL
[ *  *  *  *  * ]
I believe the Napoli mobo has a 2X AGP? What happens if you throw a 4X/8X card into that slot? Does it just run slower, or do you cause harm (or does it not work)?
Offline Profile Quote Post Goto Top

TD25x
Member Avatar
Collector of Rocket Widgets
It won't hurt any thing...it'll just run at 2X
T5224
‡ Intel DG33TLM
‡ Intel Core 2 Quad Q6600
‡ 2 x 1GB Crucial PC6400 DDR2
‡ EVGA GeForce 8800GT 512MB
‡ 1- WD 80GB SATA2 10,000RPM Raptor
‡ 1- WD 1.0TB SATA3 7200RPM
‡ Samsung 22x DVD-RW SH-S222L
‡ Corsair AX750W PSU
‡ Win7 Ult x64
‡ Logitech wireless keyboard & mouse
‡ DELL - UltraSharp 2408WFP 24-inch Flat Panel
‡ Bose Companion 3 speakers
Offline Profile Quote Post Goto Top

Pianolady
No Avatar
POSTMASTER GENERAL
[ *  *  *  *  * ]
Thanks!
Offline Profile Quote Post Goto Top

bigsteve4570
Member Avatar
6'3" & 230lbs. of Solid Geek
[ *  *  *  * ]
A 4x/8x AGP card won't even fit in a 2x slot.

This image is from an Intel web page showing a 4x card as relates to a 2x slot.

Posted Image

The VOLTAGES are different, as well.
Posted Image

"Life should NOT be a journey to the grave with the intention of arriving safely in an attractive and well preserved body, but rather to skid in sideways - Drink in one hand - smoke in the other - body thoroughly used up, totally worn out, and screaming "WOO HOO !!!, What a Ride !!!"
Offline Profile Quote Post Goto Top

TD25x
Member Avatar
Collector of Rocket Widgets
You're right bigsteve,,,well kinda...
Some 4X will fit a 2X slot, but it should say in the specs that it is 2X / 4X compatible...8X won't fit a 2X slot
T5224
‡ Intel DG33TLM
‡ Intel Core 2 Quad Q6600
‡ 2 x 1GB Crucial PC6400 DDR2
‡ EVGA GeForce 8800GT 512MB
‡ 1- WD 80GB SATA2 10,000RPM Raptor
‡ 1- WD 1.0TB SATA3 7200RPM
‡ Samsung 22x DVD-RW SH-S222L
‡ Corsair AX750W PSU
‡ Win7 Ult x64
‡ Logitech wireless keyboard & mouse
‡ DELL - UltraSharp 2408WFP 24-inch Flat Panel
‡ Bose Companion 3 speakers
Offline Profile Quote Post Goto Top

bigsteve4570
Member Avatar
6'3" & 230lbs. of Solid Geek
[ *  *  *  * ]
TD25x
Nov 10 2005, 08:11 PM
You're right bigsteve,,,well kinda...
Some 4X will fit a 2X slot, but it should say in the specs that it is 2X / 4X compatible...8X won't fit a 2X slot

Good point ... it can be a touchy cross-over item with older mobo's.
Posted Image

"Life should NOT be a journey to the grave with the intention of arriving safely in an attractive and well preserved body, but rather to skid in sideways - Drink in one hand - smoke in the other - body thoroughly used up, totally worn out, and screaming "WOO HOO !!!, What a Ride !!!"
Offline Profile Quote Post Goto Top

TD25x
Member Avatar
Collector of Rocket Widgets
HERE'S a link that may help determine compatibility.
T5224
‡ Intel DG33TLM
‡ Intel Core 2 Quad Q6600
‡ 2 x 1GB Crucial PC6400 DDR2
‡ EVGA GeForce 8800GT 512MB
‡ 1- WD 80GB SATA2 10,000RPM Raptor
‡ 1- WD 1.0TB SATA3 7200RPM
‡ Samsung 22x DVD-RW SH-S222L
‡ Corsair AX750W PSU
‡ Win7 Ult x64
‡ Logitech wireless keyboard & mouse
‡ DELL - UltraSharp 2408WFP 24-inch Flat Panel
‡ Bose Companion 3 speakers
Offline Profile Quote Post Goto Top

Pianolady
No Avatar
POSTMASTER GENERAL
[ *  *  *  *  * ]

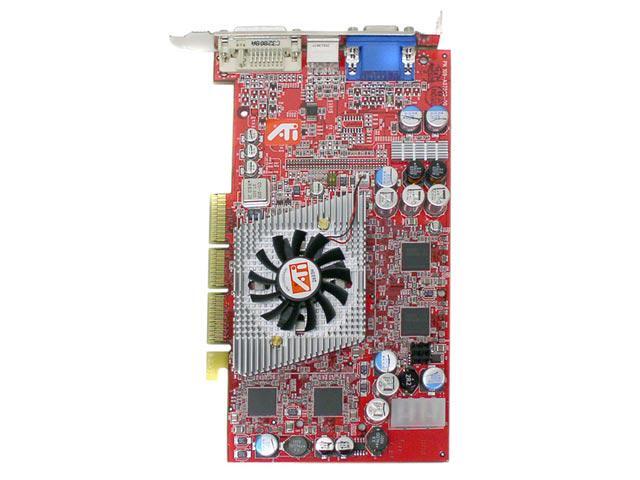

Hmmm....looks like there might be hope. I'm looking for a new home for the 9800 pro, and it supposedly will fit AGP 8X (0.8v), 4X (1.5V) or Universal AGP 3.0 bus configuration (8X/4X). I'll crack open the case and find out for sure soon. Here's a pic of the 9800pro from newegg (same model/brand as mine).

http://images10.newegg.com/NeweggImage/pro...-102-286-07.JPG
Offline Profile Quote Post Goto Top
