Doing a Extreme Build Nascar "New Pics"
Topic Started: Nov 27 2009, 07:41 PM (812 Views)
resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]

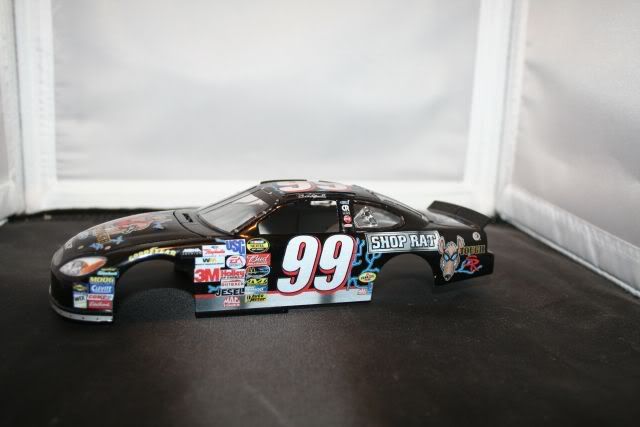

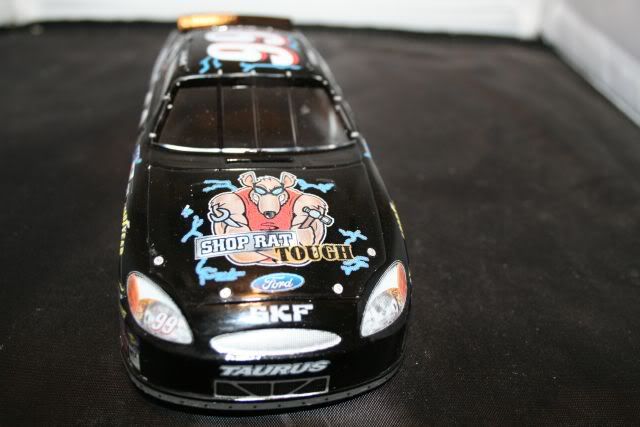

Well lets try this again.Will be building the Rookie car of Carl Edwards "The Shop Rat" Using the 04 Tarsus kit.Have the body done Thanks to Hillbilly Graphic's for some awsome decals.

Posted Image

Posted Image

Posted Image

Posted Image
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]

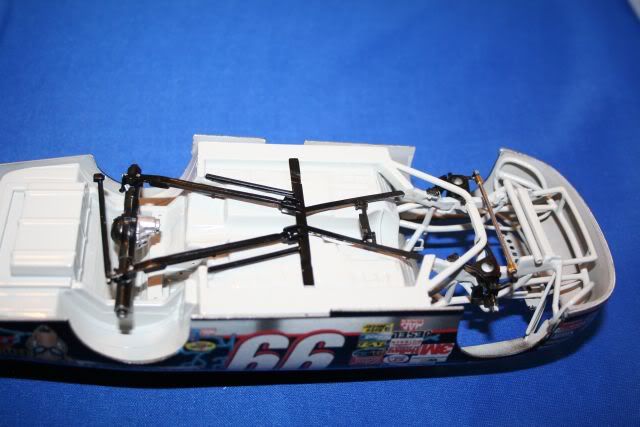

Here is the chassis i will be using.I didnt build it. Had to do some cutting on the spindle assembly.

Posted Image

Posted Image
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]

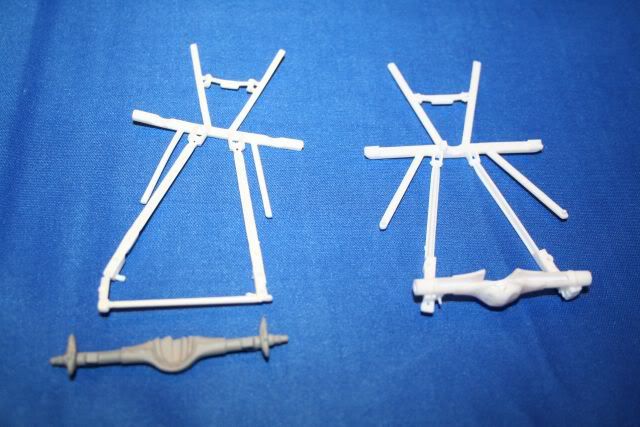

Next thing to tackle was the rear end assy and Trailing arms.Here is some shots of stock kit pieces.

Posted Image

The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]

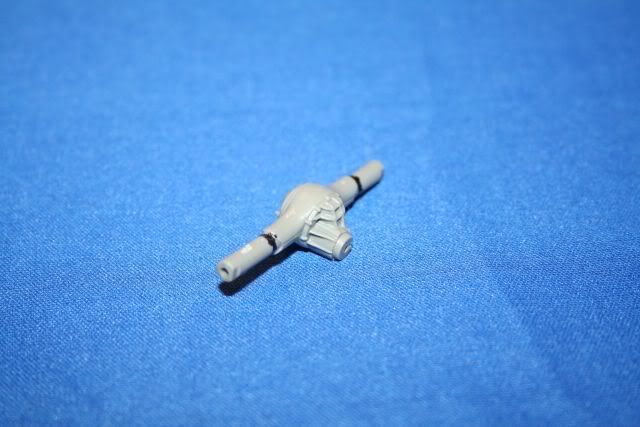

Most people overlook the AMT rear. You can see the cut lines where the housing will be cut. Use a 1/8 drill bit to open the hole up some.Next will be to use the .125 tubing for the tube guide.Remember on axle on the 9" is shorter than the other.Then use 3/32 tubing to use for the axle tubes.Here are some shots of different points in the Mod's.

Posted Image

Posted Image

Posted Image
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

wreckers9
Member Avatar
Advanced Member
[ *  *  *  *  * ]
WOW thats nice :))) wnw
git-r-done!
Offline Profile Quote Post Goto Top

ricky12
Unregistered

looking good i think its headed in the right direction :)))
Quote Post Goto Top

racing77247
Cornfed Iowa Boy
[ *  *  *  *  * ]
Thats lookin good Jamie. And I Totally Agree with what you said about overlookin the AMT Rearend's. In Fact, we do the same thing to them you and I. I use em in all my mod build's
LEAD,FOLLOW,OR GET OUT THE WAY!!

I started out with nothing,And still have most of it left!!
Offline Profile Quote Post Goto Top

skunkyg
Member Avatar
SkunkWorks
[ *  *  *  *  * ]
Looks cool!
A little rail rubbing never hurt nobody.!!!!
GOOD OLE BOYS RACING!! FLORIDA DIVISION!
Offline Profile Quote Post Goto Top

crazybob
Member Avatar
Advanced Member
[ *  *  *  *  * ]
Looking Good, So this is a poor boy build HUH!!! 3rr


CrazyBob
CrazyBob


As long as I stay busy building models the "voices" stay away

"I LOVE this FORUM"
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]
Yep,Just kit bashing and making the stuff myself........I Hope r:r
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

jlaw
Full Member
[ *  *  * ]
Was this a Cup car,or Grand National?Nice build either way.
jeff
"It's all about horsepower and traction."Don Garlits.
"I don't FEEL tardy!"David Lee Roth.
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]
A Cup car in 2004.
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

Jrodzthomazz
Advanced Member
[ *  *  *  *  * ]
looking COOL there Jamie.

Jarrod
Posted Image
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]
Well guy's if time permits the engine will be done and i will post some pictures.Oh also just to let you know when you see the aluminum pulleys,I knew Gutter nails were good for something r:r r:r Also something of more importance we here at J&J are working out the details for a Major aftermarket Co. We may have there products at all our shows. rrr rrr
Dont ask who i cant say as we have some more talking to do yet :))) :))) :)))
Oh also i only have $12.00 ic the build so far :))) :)))
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

fireguy14
Member Avatar
Moderator
[ *  *  *  *  * ]
Lookin good Jamie, can't wait to see more! rlr
Dave Sullivan
my album
There is no replacement for displacement!!
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]

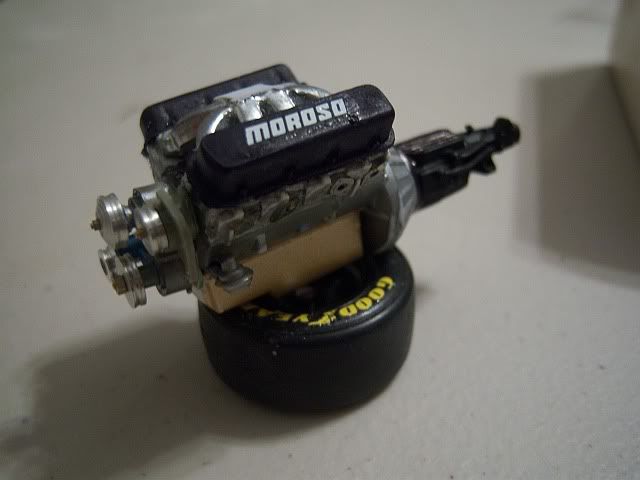

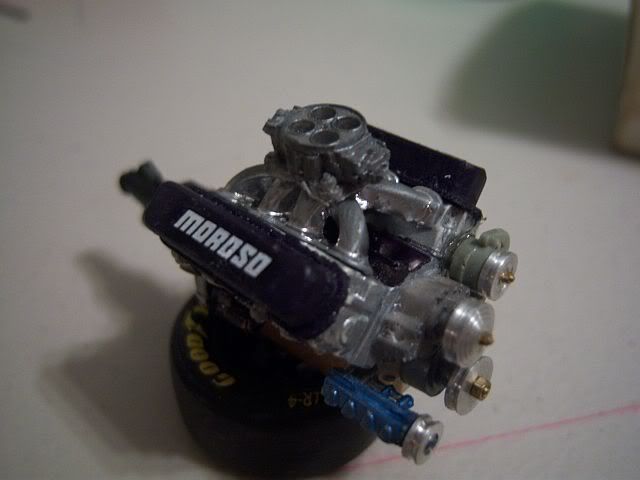

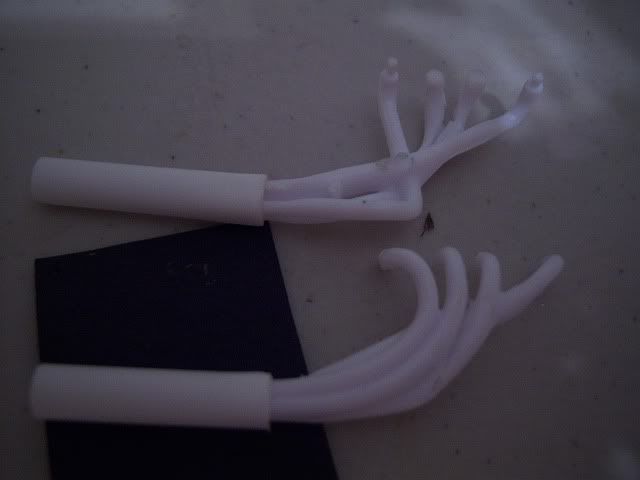

Well here is some progress on the engine,and i have to say using about 4 kits to get that kook is hard,when ya turning a chery into aFord r:r Enjoyn, I still have under $10.00 bucks in in it r:r

Posted Image

Posted Image

Posted Image

Posted Image
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

ricky12
Unregistered

jsm looking great :))) :)))
Quote Post Goto Top

racing77247
Cornfed Iowa Boy
[ *  *  *  *  * ]
NICE!!!!!!!!!!!!!!!
LEAD,FOLLOW,OR GET OUT THE WAY!!

I started out with nothing,And still have most of it left!!
Offline Profile Quote Post Goto Top

skunkyg
Member Avatar
SkunkWorks
[ *  *  *  *  * ]
Like your engine... did you make them pullys? I want some!
A little rail rubbing never hurt nobody.!!!!
GOOD OLE BOYS RACING!! FLORIDA DIVISION!
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]
Yes i machined them,I dont tend to do machining for others as i dont have cnc machines to make every piece the same.
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

Chargincharlie6
chargincharlie6
[ *  *  *  *  * ]
OOOOOWEEEEEE Jamie. I sure do like that. fbr fbr fbr Is that what I think it is? You're doing me mighty proud! Love the extra work on the chassis. :)))
Your friend and brother,
Dave B.
AMB RACING Oshkosh, Wi.
You can do it, because you can!
Offline Profile Quote Post Goto Top

resin-daddy
Member Avatar
Administrator /Old has been!!
[ *  *  *  *  * ]
Thanks Folks. Still doing some more chassis work and finishing up the enging :))) :)))
The Smell,Rubber Burning,Nitro In the Air...Never mide me im just looking for my Meds
Offline Profile Quote Post Goto Top

KARL STARK
Member Avatar
Advanced Member
[ *  *  *  *  * ]
Looks good to me you old tightwad r:r
Old School Fool
http://public.fotki.com/chucky151/
"JALOPY MASTER"
Offline Profile Quote Post Goto Top

Ancient Modeler
Advanced Member
[ *  *  *  *  * ]
TU>

Looking real good so far, Jamie! It doesn't take a lot of money to detail if you can make the details. And a lot of stuff can be made from odds and ends around us!

Keep it up!

Mongo
Dark Side Rules!
Offline Profile Quote Post Goto Top
