Functional Roll Back pt 1
Topic Started: Jan 19 2007, 07:01 PM (950 Views)
Member Avatar
[ *  *  *  *  * ]

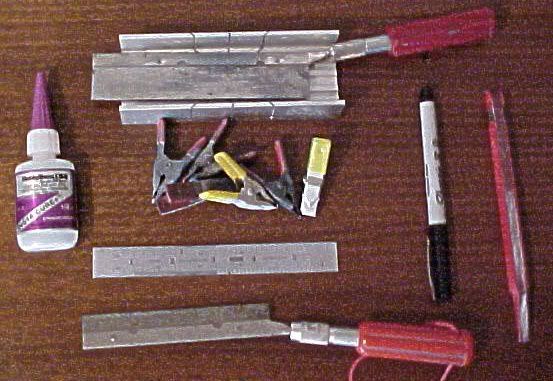

You will need the following supplies:

1/4" H-columns
.080x.188 strips
.187x.312 rectangular tubing
3/16" round tubing
3/16" square tubing
CA glue
Slow setting glue
Razor saw
Sanding stick
Sanding paper
Hobby Knife

Posted Image
Posted Image

Making The Frame

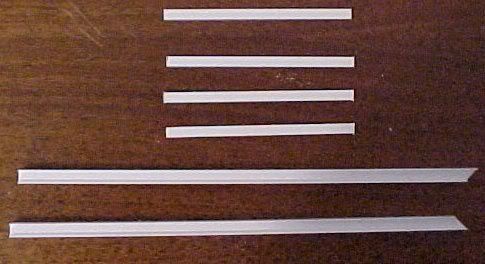

You will need to cut two (2) pieces of H-columns 8 1/2" long, and four (4) pieces of .080 strips 3 1/2" long. Cut a 45 degree angle at one end of the H-columns.
Posted Image

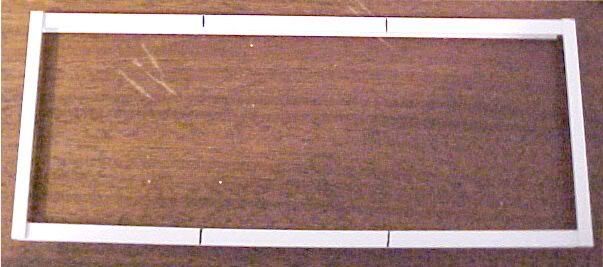

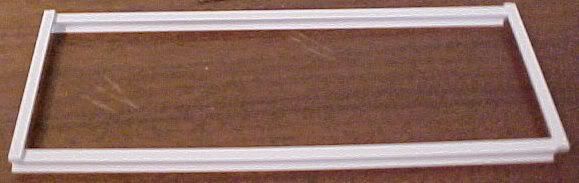

Glue one strip at both ends of the H-columns making sure to keep the strips square to the H-columns. Mark the H-columns 2 3/4" and 5 1/2", this is where the other 2 strips go.

Posted Image
Posted Image
Posted Image

This completes the base frame of the bed.

Making The Deck

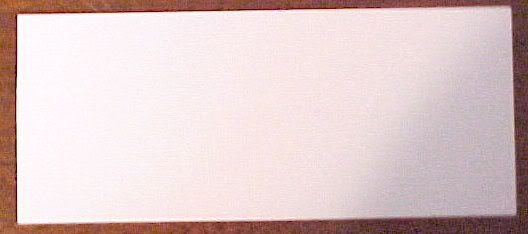

Now you will need to cut a 8 17/32"x3 17/32" piece of .030 sheet plastic. The over sized piece makes for easier attachment and can be sanded in finial assembly.
Posted Image

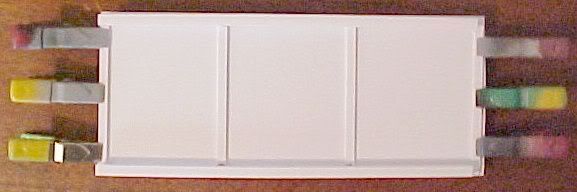

I found it easier to sand surface of the deck now rather then waiting after it is attached to the frame. Using a slow setting glue, attach the deck to the frame with some clamp. Set it aside to dry.
Posted Image

Go tp part two.
