DX fork restrictors
Tweet Topic Started: Feb 11 2015, 01:03 PM (73 Views)
Fisambard Feb 11 2015, 01:03 PM Post #1
Member Avatar
Fisambard
[ *  *  *  *  *  * ]
Posts:
618
Group:
Members
Member
#2,903
Joined:
August 31, 2007
Wanted; a pair of FS1E DX fork restrictors (cone shaped objects that sit in the bottom of the fork inner tubes)
cheers
Offline Profile Quote Post Goto Top

jakey Feb 11 2015, 04:53 PM Post #2
Member Avatar
RUDE BOYS ARE BACK IN TOWN
[ *  *  *  *  *  * ]
Posts:
1,996
Group:
Members
Member
#2,742
Joined:
July 1, 2007
Wayne , I cannot think what they are ?
Offline Profile Quote Post Goto Top

mech73 Feb 11 2015, 10:34 PM Post #3
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007

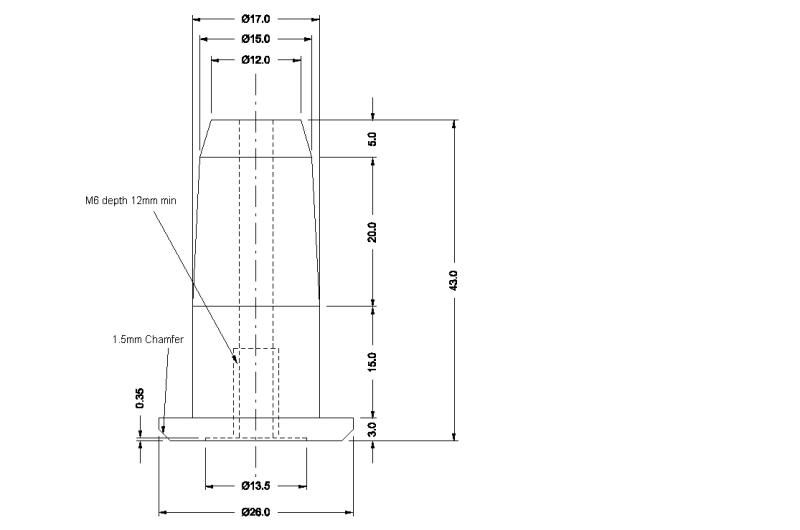

I don't have any spare, but I do have a drawing if thats any use?

Posted Image
Offline Profile Quote Post Goto Top

Fisambard Feb 11 2015, 10:54 PM Post #4
Member Avatar
Fisambard
[ *  *  *  *  *  * ]
Posts:
618
Group:
Members
Member
#2,903
Joined:
August 31, 2007
Yes, that's the part Mark. I am going by the Haynes manual drawing (number 3) in the list of parts.


Offline Profile Quote Post Goto Top

Fisambard Feb 15 2015, 09:39 PM Post #5
Member Avatar
Fisambard
[ *  *  *  *  *  * ]
Posts:
618
Group:
Members
Member
#2,903
Joined:
August 31, 2007
Thank you so much for that Mark. Where did you find that drawing?
I think I am going to have to make a pair, unless someone comes up with a knackered pair of fork legs that I can salvage the restrictors from.
cheers
Offline Profile Quote Post Goto Top

mech73 Feb 16 2015, 08:35 PM Post #6
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007
Fisambard
Feb 15 2015, 09:39 PM
Where did you find that drawing?
I did the drawing. The measurements are from a genuine one. I also needed one and made it from a piece of aluminium. :)
Edited by mech73, Feb 16 2015, 08:35 PM.
Offline Profile Quote Post Goto Top

Fisambard Feb 20 2015, 03:38 PM Post #7
Member Avatar
Fisambard
[ *  *  *  *  *  * ]
Posts:
618
Group:
Members
Member
#2,903
Joined:
August 31, 2007
Thanks again Mark
the drawing and dimensions were spot on. Now fitted and the project up snd running again.
Perhaps pin the drawing for future reference.
Offline Profile Quote Post Goto Top
