Tweet Topic Started: Feb 28 2010, 07:21 AM (108 Views)
berty Feb 28 2010, 07:21 AM Post #1
Total Fizzy Nut
[ *  *  *  * ]
Posts:
61
Group:
Members
Member
#5,018
Joined:
November 5, 2009
Just started sorting my wiring out??? Can somebody tell me if there should be 6v at the Points and condensor. I have 6v at all brown wires and i think i have worked out where everything goes but i have nothing at the stator plate? I thought i should be able to get a spark from the points with the ignition on? (The bike was in bits when i bought it so i am working off the wiring diagram posted on this forum) Also what should i expect from ignition position 1 and ignition postion 2 regards to voltage.
Offline Profile Quote Post Goto Top

mech73 Feb 28 2010, 10:06 AM Post #2
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007

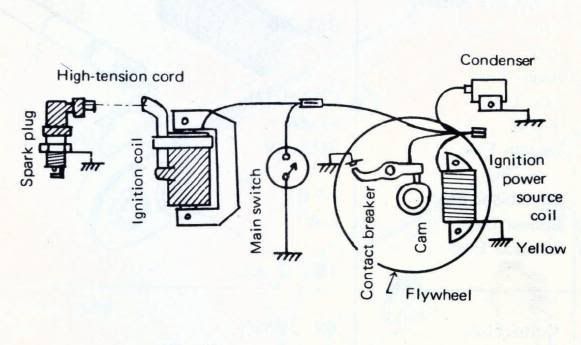

The ignition is "self generating" so there is no voltage at the points unless the engine is spinning. You should get a spark unless the wire (usualy black or black and white) that goes between the points and top coil is earthed, which it should be when the ignition switch is in the '0' position. If this wire is disconnected from the switch, the engine should spark whatever position the switch is in (it must still connect to the top coil of course).

Position '2' is to switch the lights on, which which run on AC, direct from the generator. Only the horn, indicators and brake light work on DC from the battery.

Cheers

Mark C

Posted Image
Offline Profile Quote Post Goto Top

berty Feb 28 2010, 12:48 PM Post #3
Total Fizzy Nut
[ *  *  *  * ]
Posts:
61
Group:
Members
Member
#5,018
Joined:
November 5, 2009
thanks for that Mark, that clears things up abit :)
