Yamaha brakehos; Brakehose
Tweet Topic Started: Dec 13 2009, 08:23 AM (95 Views)
Danishguy Dec 13 2009, 08:23 AM Post #1
Junior Fizzy Nut
[ *  * ]
Posts:
11
Group:
Members
Member
#5,049
Joined:
December 6, 2009
Hello. I am looking for a brakehose with spiral all the way down too the brake line. New or used wanted.

Kind Regards Danishguy
Offline Profile Quote Post Goto Top

mech73 Dec 13 2009, 09:10 AM Post #2
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007
Try this chap, he made one for me.

http://japanesemotorcyclebrakehoses.co.uk/
Offline Profile Quote Post Goto Top

Danishguy Dec 13 2009, 10:02 AM Post #3
Junior Fizzy Nut
[ *  * ]
Posts:
11
Group:
Members
Member
#5,049
Joined:
December 6, 2009
Hi Mech73

Thanks for the reply and link. But he will probally need some measures or a picture off how it looked too make a new one. And i do not have that. Maybe someone in here has a used one?

Thanks danishguy
Offline Profile Quote Post Goto Top

mech73 Dec 13 2009, 11:27 AM Post #4
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007

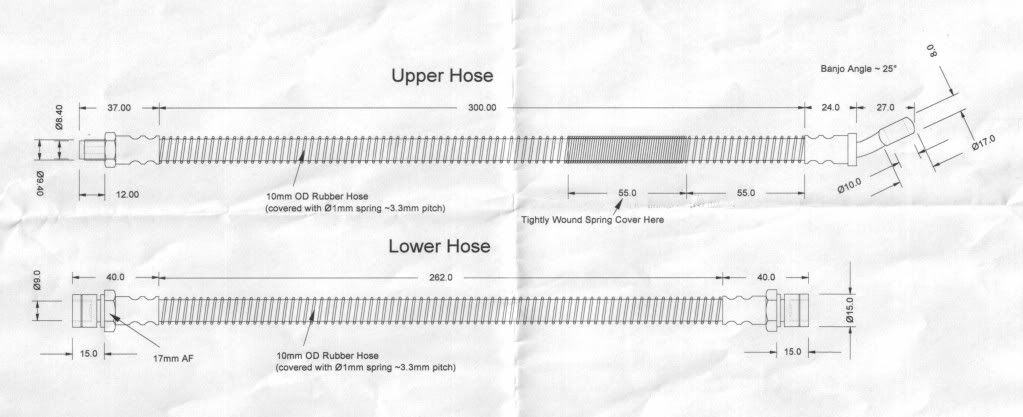

I've got a drawing of the first UK model dx hose (1975) that was in two parts if that's of any use. I know it changed to a one part hose in 1976 which was essentialy the same, but without the centre joint. In both cases the last bit to the (in front of the fork leg) calliper is a short length of steel pipe. The overall length is going to depend on which handlebars were fitted. The UK DX's had lower handlebars than the drum brake models.

Posted Image
Edited by mech73, Dec 13 2009, 11:37 AM.
Offline Profile Quote Post Goto Top

Danishguy Dec 13 2009, 11:48 AM Post #5
Junior Fizzy Nut
[ *  * ]
Posts:
11
Group:
Members
Member
#5,049
Joined:
December 6, 2009
Hi Mech73

Thanks again! That`s a nice drawing you have there. It`s right that the model here was "one" brakehose. But if i send this picture too the company with total lenght. They sould be able too make it as one brakehose. Right? Do you have a picture off the one they made for you?

Thanks Danishguy
Offline Profile Quote Post Goto Top

mech73 Dec 13 2009, 02:14 PM Post #6
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007
I'm away from home at the moment, but I'll take a photo later tonight. What is the year of your bike?

Cheers

Mark C
Offline Profile Quote Post Goto Top

Danishguy Dec 13 2009, 04:10 PM Post #7
Junior Fizzy Nut
[ *  * ]
Posts:
11
Group:
Members
Member
#5,049
Joined:
December 6, 2009
It`s a 1976 DX
Offline Profile Quote Post Goto Top

mech73 Dec 13 2009, 08:41 PM Post #8
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007

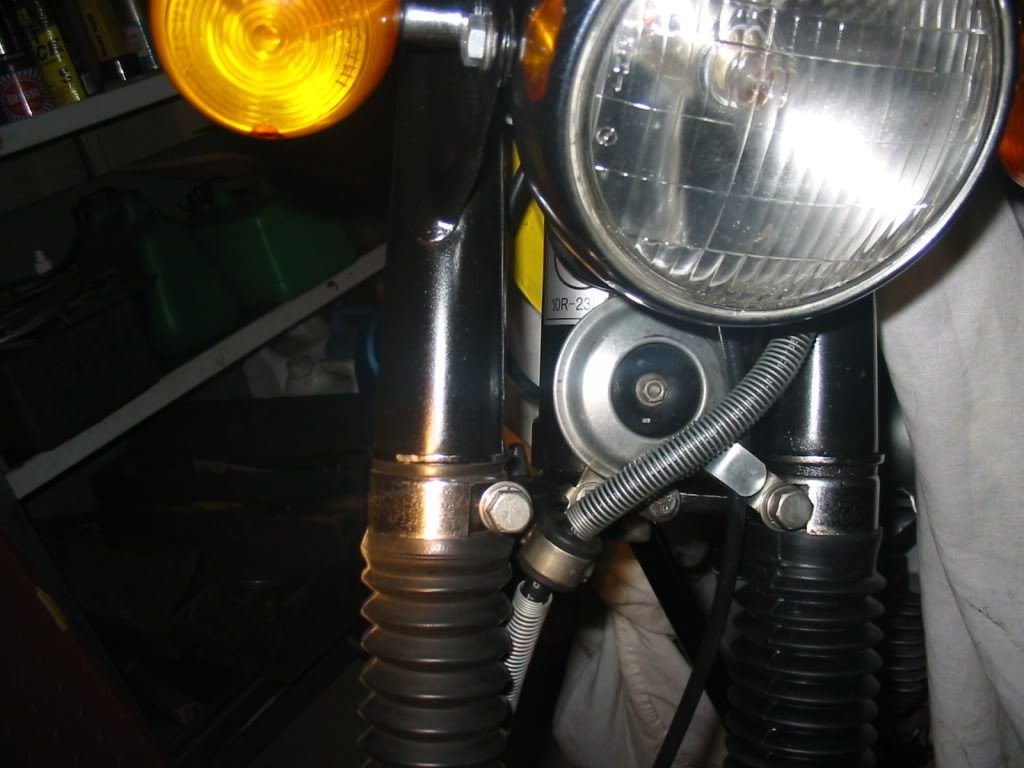

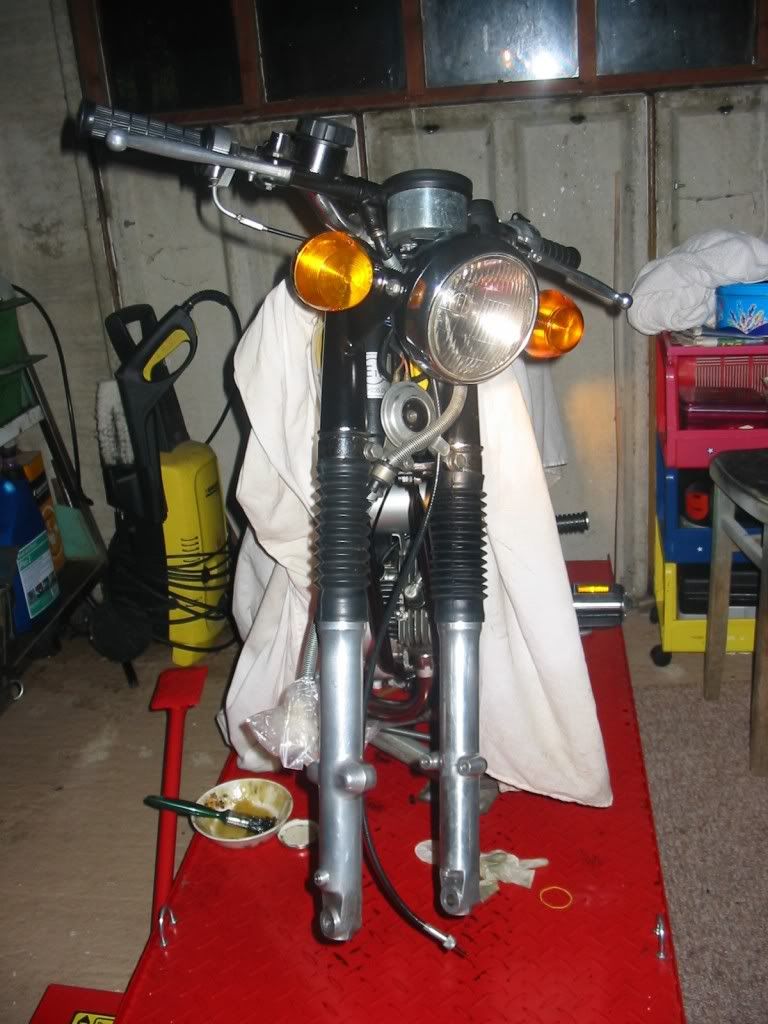

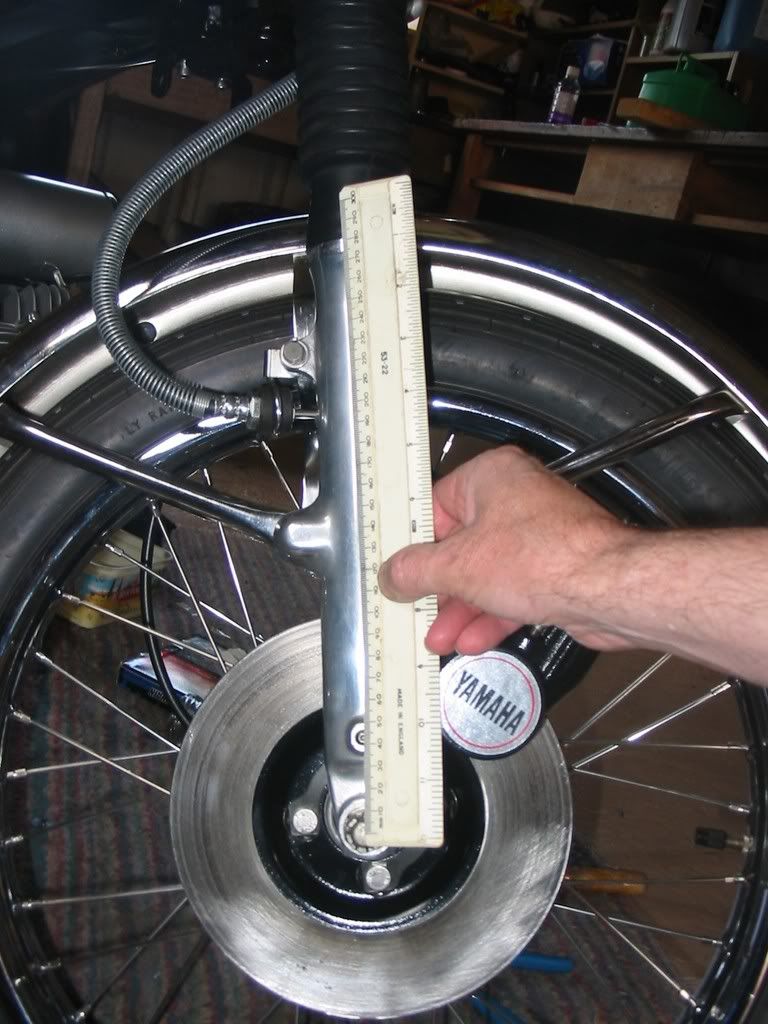

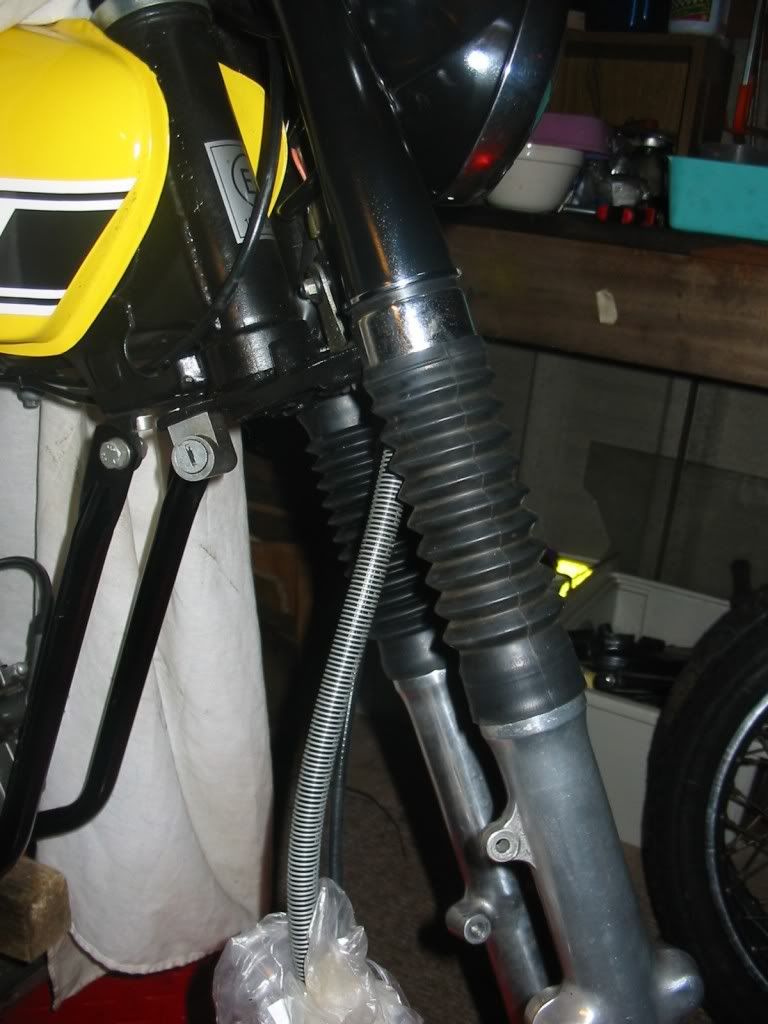

Here are the photo's of my brake hose taken tonight, apart from the one with the rule which was taken in 2008, when the hose was brand new. The hose I had made was one piece, which is correct for my year of FS1EDX (1977) but the length and end fittings were based on the sketches I posted earlier. Instead of the join in the middle, a rubber tube was added to fit in the clamp piece that you can see just below the horn in the pictures.

Cheers

Mark C

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Danishguy Dec 14 2009, 08:15 PM Post #9
Junior Fizzy Nut
[ *  * ]
Posts:
11
Group:
Members
Member
#5,049
Joined:
December 6, 2009
Hello Mech73

Thanks for the pictures. It`s exactly the one i need. I will try and send them an email. How much did you pay for it?

Kind Regards Danishguy
Offline Profile Quote Post Goto Top

mech73 Dec 14 2009, 09:42 PM Post #10
Member Avatar
Fizzmeister Extrodinaire
[ *  *  *  *  *  * ]
Posts:
3,067
Group:
Members
Member
#2,607
Joined:
May 19, 2007
I paid about £30 I think. That was in March 2008. I sent him my old two piece hose as a pattern as well as the drawing and he made me the one piece hose to the same total length. His email address was classichoses@aol.com. Quote my name (Mark Chambers) if you wish, as he may keep records of what he has made and for whom.

Cheers

Mark C
Offline Profile Quote Post Goto Top
